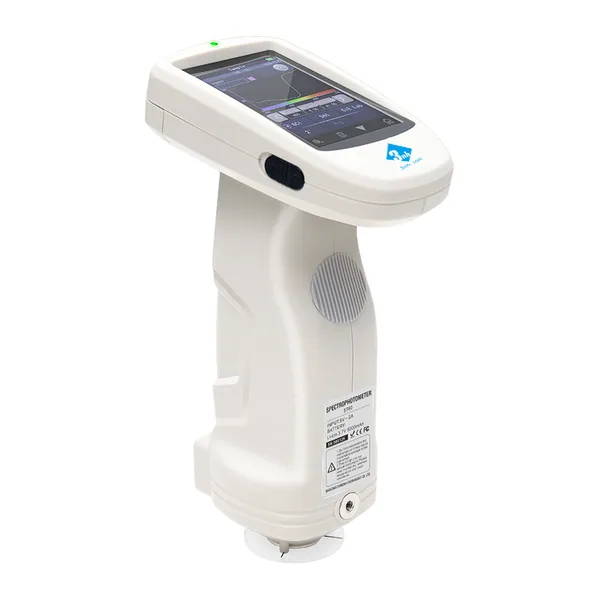

ST60 spectrophotometer
The portable 3nh ST60 combines d/8° geometry, SCI/SCE measurement and LED plus UV illumination for colour quality control. Four measurement tips and a positioning camera help match the setup to the sample surface.
- d/8° geometry with SCI/SCE measurement
- LED and UV illumination for fluorescent samples
- Four tips: flat and extended versions for 8 mm and 4 mm apertures
- Camera-assisted sample positioning
- USB and Bluetooth connectivity for transferring results
The ST60 measures colour differences between a reference and a sample. Its d/8° optical arrangement supports SCI and SCE modes, allowing evaluation with the specular component included or excluded. LED illumination is combined with UV for applications involving fluorescent materials.
Position the instrument consistently
Four supplied measurement tips provide flat and extended options for 8 mm and 4 mm apertures. This helps adapt the measurement setup to the available surface and the shape of the part. The built-in camera shows the area under examination, making it easier to locate small details or select a representative section of a patterned sample.
Keep production checks connected
Typical applications include plastics, coatings, inks, textiles, printed materials and ceramics. The instrument displays spectral and colour data together with the difference from a reference. USB and Bluetooth connections support transfer of results for further analysis and record keeping.
Before selecting a configuration, consider sample dimensions, surface finish and whether optical brighteners are present. These factors influence aperture choice and measurement settings. Tell us what you need to inspect and how results will be used, and we can help specify an ST60 setup for your colour-control process.
