Haze measurement of transparent materials
Haze, transmittance and transmission colour — quality control of films, glass, packaging and transparent plastics.
Clarity in numbers
For transparent materials, two parameters matter most: haze — the fraction of scattered light that makes a material look milky — and transmittance, the amount of light passing through. Both are measured with a haze meter to the ASTM D1003 and ISO 14782 standards.
3nh haze meters measure haze and transmittance, and “color haze” models additionally assess transmission colour — important for tinted films, packaging and glass. For light-transmission measurement alone, transmittance meters are used with glass, filters and lenses.
Objective haze and transmittance measurement delivers repeatable optical-quality control and compliance with the requirements of packaging, automotive and electronics customers.
Instruments for transparent materials
mglomierze

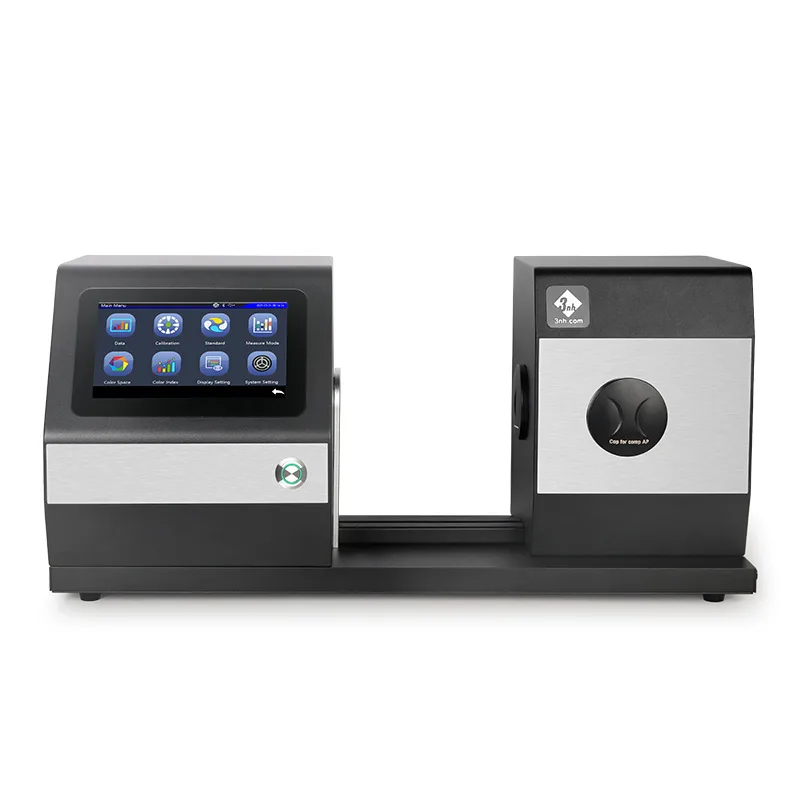

YH1210 Haze Meter
Entry-level benchtop haze meter for measuring haze and light transmittance on transparent samples — ASTM D1003 / ISO 13468 compliant, open chamber for vertical and horizontal testing.
- Dual standard — ASTM D1003 (non-compensation) and ISO 13468 (compensation)
- PD array detector matched to the CIE V(λ) 2° visual response
- Four apertures (Φ20/15/8/4 mm) and an open sample chamber
- Repeatability under 0.05 (Φ20 mm), memory up to 20,000 samples, USB interface
mglomierze
YH1810 Color Haze Meter
Benchtop color haze meter for simultaneous haze, transmittance and full-colour measurement of transparent samples — ASTM D1003 / ISO 13468 compliant, apertures up to Φ20 mm, 7-inch touchscreen.
- Dual standard — ASTM D1003 (non-compensation) and ISO 13468 (compensation) in one instrument
- Measures haze and transmittance AND full colour (CIE Lab, XYZ, ΔE) via a 256-pixel CMOS sensor
- Four apertures (Φ20/15/8/4 mm) and an open chamber for vertical or horizontal testing
- Repeatability under 0.05 (Φ20 mm), memory up to 30,000 samples, USB and Bluetooth
mglomierze
YT1020 Optical Transmittance Meter
Ultra-thin, portable optical transmittance meter for fast light-transmission testing of glass, film and other transparent materials — four spectral bands, 0.5-second readings.
- Four light-source types — UV, visible, IR 940 nm, IR 1400 nm and full-band IR
- About 0.5 s measurement time, 0.1% resolution, accuracy better than ±1.5%
- Ultra-thin design (samples up to 47 mm), auto-calibration on startup
- 3.5" TFT touchscreen, USB-C power, 5-year light-source life
Frequently asked questions
How does haze differ from transmittance?
Transmittance is the total light passing through a material, while haze is the fraction of light scattered at a wide angle — responsible for the "milky" look. ASTM D1003 defines both parameters.
When should I choose a "color haze" meter?
When, besides haze and transmittance, you need to control the material's transmission colour — for tinted films, coloured glass or packaging. Color-haze models (e.g. YH1810) combine all these measurements.
